Origin Specs:
Input Power

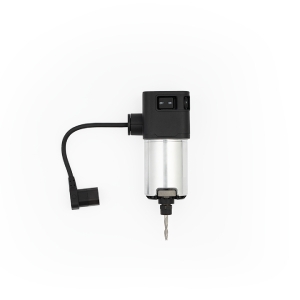

120VAC, 60Hz. 7ASpindle Motor
720W brushed AC motor10,000 - 26,000 RPM with load-compensating speed control
Soft-start, over-temperature and over-load safety cut-offs
Produced by Festool to Shaper specifications
Collet
Includes a ¼” collet that accepts any commonly available ¼” shank router bits⅛” collet sold separately, available from Shaper
Depth Control
43mm (1.7”) of total Z-axis travelDigitally adjustable depth-of-cut
Automated touch-off sensor
Dust Extraction Port
Designed with the SM-1 spindle to provide optimal debris extraction34mm inner diameter by 39mm outer diameter port dimensions
Fits most standard 27mm (35mm OD) and 36mm suction hoses (e.g. Festool, Fein)
Includes a 6.5’ adaptor hose with a 2 ¼” OD nozzle for use with US-standard wet/dry vacs
Connectivity
Wi-Fi enabled for transfer of design files via ShaperHub, and for receiving software updatesUSB port allows easy offline transfer of design files
Touch Screen
Capacitive multi-touch full-color LCDDimensions

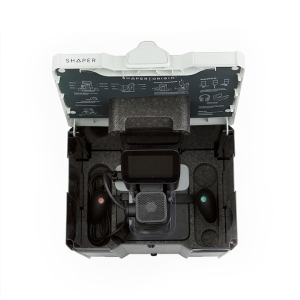

Origin: 13.35” (handle-to-handle) x 8.94” x 12.04”Systainer: 15 ½” x 11 ½” x 17” (SYS 5 T-LOC Systainer)
Weight
Origin: 14.9 lbsPackaged (with accessories) in Systainer: 23.5 lbs
