The Mafell KSS 300 cross-cutting system offers finish carpenters, floor-layers and cabinet makers a whole new way to make fast and highly accurate straight and plunge cuts. This lightweight and innovative circular saw is connected to a unique aluminum guide track composed of a friction pad on the bottom side of the guide and an adjustable smart stop for either perfectly square cuts or precise miter cuts up to a 60° angle. The carpenter simply places the guide track up against the leading edge of the stock and pushes the saw through the wood, without needing to guide the saw or follow the line by eye. Since the hard plastic edge of the aluminum guide is aligned with the carbide blade, splintering of the top surface of the wood is prevented, even with angle cuts.
The KSS 300 cross-cutting enables you to saw with angular precision and only one hand on the machine. Its handling is unbeatable! Thanks to magnesium die-cast components, the entire system weighs only 6.6 lbs. The FLIPPKEIL riving knife automatically withdraws into the body of the saw during plunge cuts and then returns to its safety position as you advance forward with your cut. Once the cut has been executed, the saw effortlessly returns to the starting position on the aluminum track via an integrated polyethylene cable.

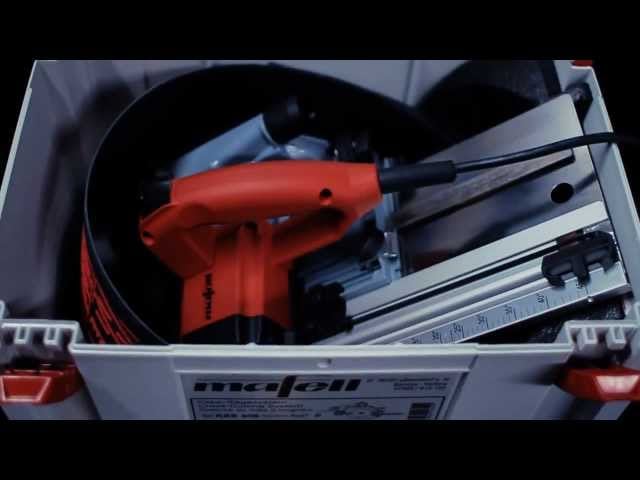

Since this saw can cut up to 1-1/16in deep at a 45° angle, so it is perfect for window, door, rake and eave trim. For accurate long cuts, attach this fine saw to the 4.5 foot long Flexi-Guide FX140 and run the saw down the track for a perfectly straight cut. When your project is complete, the Flexi-Guide can be rolled up and stored with the saw and aluminum guide track in the carrying case.
Stop carrying those heavy tools to your worksite! The KSS 300 takes the place of a chop saw and table saw, enabling the finish carpenter to make accurate and clean cuts at the work location, rather than walking back and forth to stationary saws. Within moments of using a KSS 300, you will be convinced that this is one of the most clever inventions of the 21st century -- an ideal tool for shadow gaps, rip, bevel, plunge and angled cuts, as well as free-hand work since the saw can be quickly removed from the aluminum track.
Features
- Highly portable at only 6.6 lbs., comes with Flexi-Guide and carrying case
- Up to 1-9/16in cutting depth and 11-13/16in cutting length on cross-cutting track
- Powerful 1,000 W motor
Includes
- T-MAX Systainer
- Flexi-Guide, 1.4 m (MaxiMAX only) 204372
- TCT sawblade 120 x 1.2/1.8 x 20 mm / 40 flat/trapezoidal teeth 92559
- Parallel fence 203180
- Hose connector 203782
- Allen key 093074
- Cable, 4 m 087323
Specifications
- Cutting depth at 0° on track: 0 to 1-9/16in
- Cutting depth at 45° on track: 0 to 1-1/16in
- Cutting depth at 0° off track: 0 to 1-5/8in
- Cutting depth at 45° off track: 0 to 1-1/8in
- Tilt range: 0 to 45°
- Saw blade diameter: 4-11/16in
- Nominal speed - no load: 8,800 rpm
- Motor: 120 V / 60 Hz
- Current: 9.1 A
- Weight with track: 6.6 lbs.
Uses:
- Drilling dowel holes in cabinet construction
- Creating alignment pins in furniture assembly
- Making holes for wooden dowels in chair frames
- Drilling precise holes for shelving supports
- Constructing wooden toys with dowel joints
- Crafting wooden frames with dowel reinforcement
- Building wooden staircases with dowel fittings
- Assembling wooden table frames with dowel connections
- Creating dowel joints in wooden door construction
- Drilling holes for dowels in wooden bed frames
