Trend Professional Lock Jig, Adjustable Fence for 1-5/16 to 2-1/4 Inch Doors, Quick-Release Clamps, 20 Interchangeable Templates, LOCK/JIG/C

PRODUCT DETAILS

Click an item to expand and learn more

• Overview

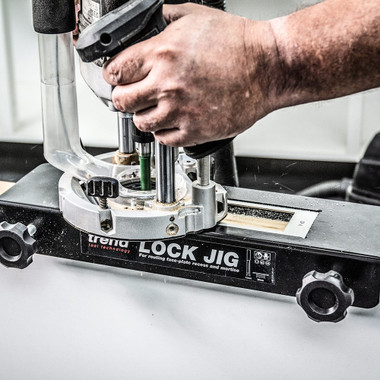

  Experience precision and efficiency with our Accurate Lock Cutting tool, designed to create exact lock body and faceplate recesses for mortice locks, deadbolts, and tubular latches in wooden doors. Built with a robust steel body, this heavy-duty tool features an adjustable fence that accommodates doors ranging from 1-5/16 to 2-1/4 inches thick, ensuring consistent and repeatable results every time. The quick-release clamping system, equipped with non-marring pads, securely holds doors in place without causing surface damage during routing. Enhance your versatility with the included 20 interchangeable templates, covering standard lock and faceplate sizes, and a handy reference guide for quick selection. For optimal performance, pair this tool with a 1/2 inch plunge router, a 1/2 inch diameter cutter (63mm length), and a 30mm guide bush. Perfect for professionals and DIY enthusiasts alike, this tool is a must-have for precise and efficient lock installation.

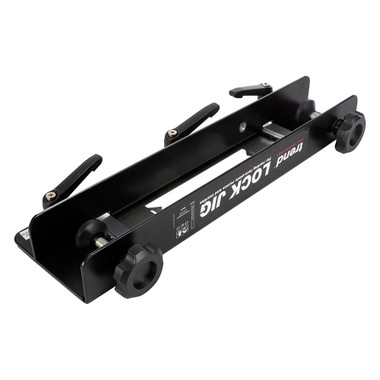

  • Steel Construction for maximum strength, durability and accuracy.
  • Full-Length Adjustable Fence to accommodate all doors between 34mm and 58mm thick.
  • Quick-Release Clamps with non-marring pads ensure the jig is held securely.

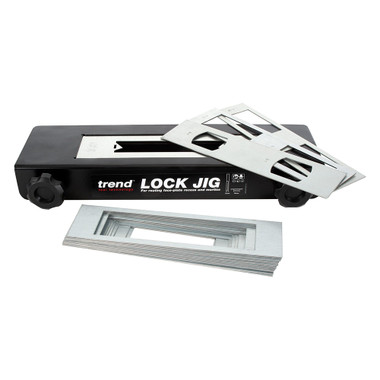

  • 20 Interchangeable Templates to suit all common lock case and face plate sizes.
  • Easy Reference Chart ensures that correct templates are found quickly.
  • Requires: ½”/12mm Plunge Router (80mm plunge depth), ½”/12mm Router Cutter (12mm cut diameter x 63mm cut length), and 30mm Guide Bush.

  Specs:

  • Door thickness min.: 34 mm
  • Door thickness max.: 58 mm

  Faceplate Templates:

  • 25.4 x 60.0mm (Tubular Latch): 22(A)
  • 24.0 x 57.5mm (Tubular Latch): 22(B)
  • 26.0 x 56.5mm (Tubular Latch): 23(A)
  • 26.0 x 57.5mm (Tubular Latch): 23(B)
  • 22.2 x 128.5mm: 20
  • 22.2 x 155.0mm: 1
  • 22.5 x 152.5mm: 2
  • 25.4 x 121.0mm: 3
  • 26.0 x 134.0mm: 5
  • 25.4 x 153.0mm: 7
  • 25.4 x 165.5mm: 9
  • 25.4 x 177.0mm: 10
  • 26.0 x 139.0mm: 21
  • 26.0 x 162.0mm: 12

  Mortise Templates:

  • 19 x 22mm (Tubular Latch): J(A)
  • 22 x 24mm (Tubular Latch): J(B)
  • 16 x 72mm: A
  • 16 x 102mm: F
  • 16 x 109mm: B
  • 19 x 78mm: C
  • 19 x 90mm: E
  • 19 x 109mm: D
  • 19 x 115mm: H

  Uses:

  • Standard panel-to-panel connector plate for joinery projects
  • Helps align and join cabinet panels with precision
  • Supports consistent spacing in furniture assemblies
  • Useful for sturdy core connections across panels
  • Works with screws or mechanical fasteners easily
  • Helps maintain structural integrity in frames
