Introducing our innovative Front Edge Alignment Technology, designed to replace traditional setup pins and provide direct positioning at the start of the mitre joint, accommodating any worktop width up to 950mm. This makes it perfect for custom or out-of-square installations. Our system ensures precise inset creation with Narrow Inset T-Gauges and the Front Edge Alignment Device, allowing for quick and accurate 3mm and 10mm insets. This enhances the finish on square-edged and bullnose worktops while improving tool efficiency and runtime. The Male Cut-Line Positioning feature simplifies complex setups by enabling direct positioning to the male cut line, eliminating the need for intricate measurements and ensuring accuracy in trapped and irregular installations. With standard and specialized backsets, our product offers indexed backsets for worktop widths including 600, 610, 616, 620, 635, 700, 900, and 950mm, ensuring rapid and precise alignment for both standard 90º and complex cuts. Additionally, it accommodates all standard worktop bolt sizes, including Zipbolt and Unika Slimline, and includes essential cutting radii and angles for breakfast bars, peninsulas, and edge finishing, providing versatile fixing and finishing options.

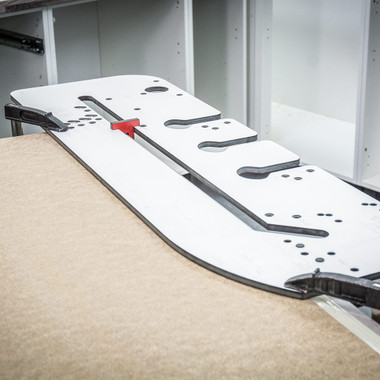

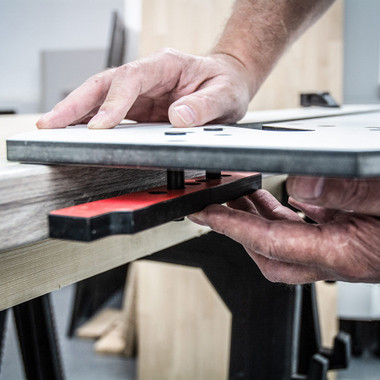

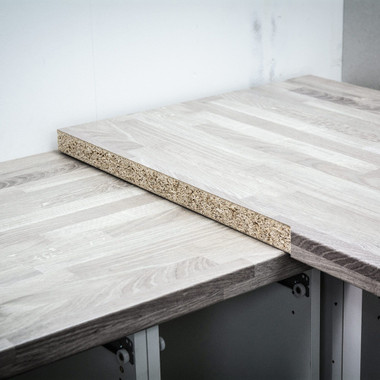

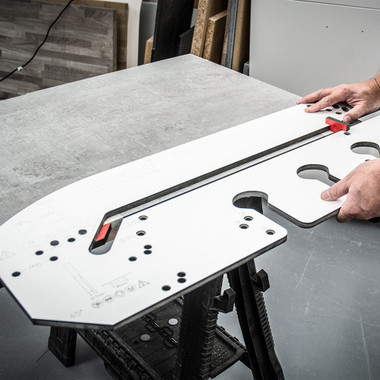

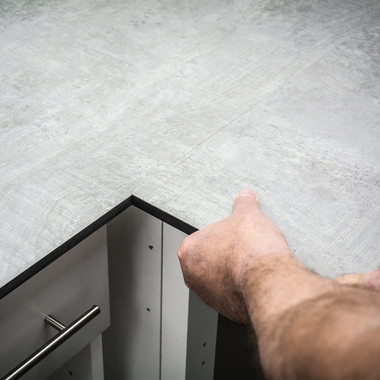

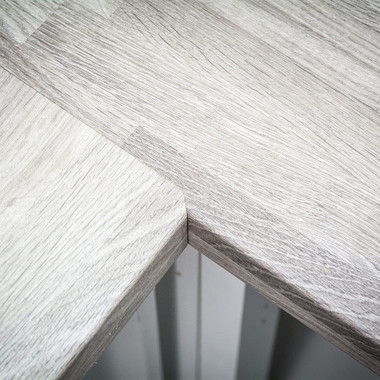

- Front Edge Alignment Technology* accurately positions the jig directly to the start of the mitre joint to accommodate any worktop width.

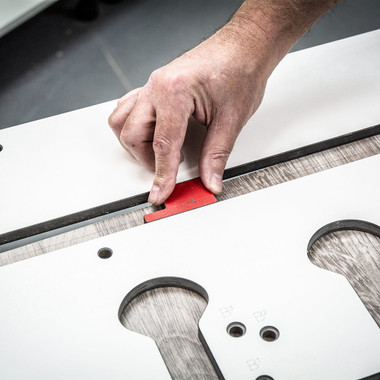

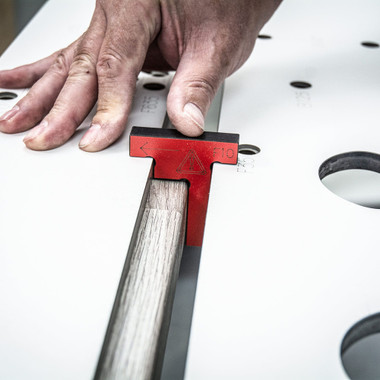

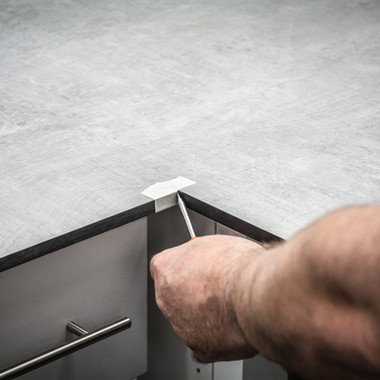

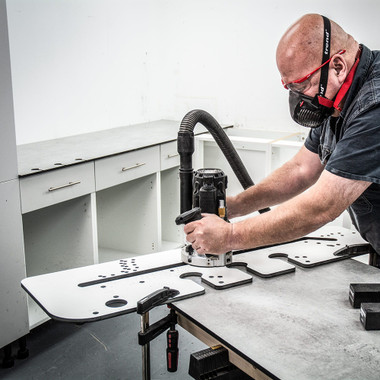

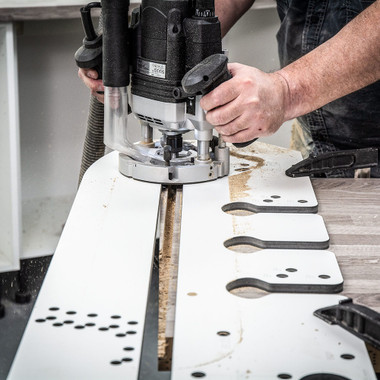

- Narrow Inset T-Gauges create 3mm and 10mm insets quickly and easily. Perfect for square-edged and modern bullnose worktops; narrow insets give a cleaner aesthetic, prevent cutter wear, and improve cordless router runtime.

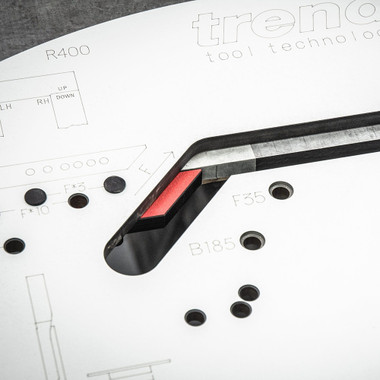

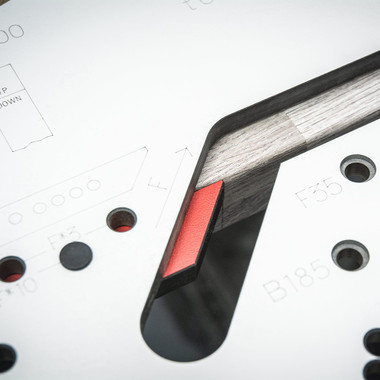

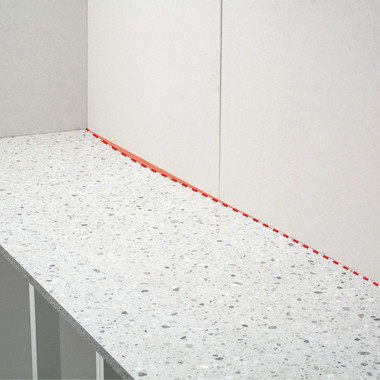

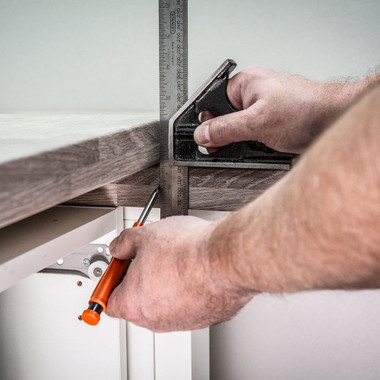

- Male Cut-Line Positioning Devices* allow the jig to be positioned directly to the male cut line and remove the need for complex length, angle and offset calculations. Ideal for trapped and out-of-square installations.

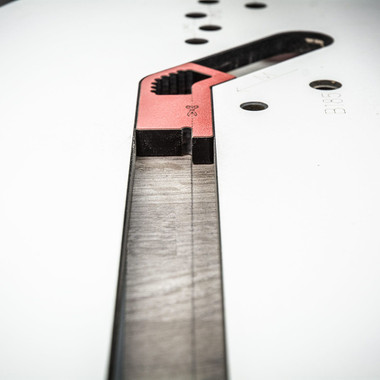

- Preset Connector Bolt Recesses accommodate all standard worktop bolt sizes, including Zipbolt and Unika ‘Slimline’ connection bolts.
- Indexed Backsets for 600, 610, 616, 620, 635, 700, 900 and 950mm worktops for standard 90º installations.
- 400mm Radius for breakfast bar and peninsula trimming.

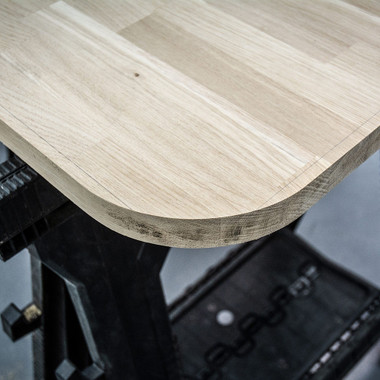

- R100mm, R40mm and 45° Corners for edge finishing.
- 90° Straight Cuts for accurate skimming and trimming.
- 35mm Hinge / ¾” BSP Recess for surface-mount monobloc tap and concealed hinge installation.
- CNC-Machined Compact Grade HPL provides precision, strength and durability
- 8mm Radius Gauge ensures worktops are suitable for a 10mm narrow inset.
- 8.65mm Marking Gauge helps to perfectly position the jig for peninsula, radius and 45° corner finishing.
Specs:
- Length: 1260 mm
- Width: 340 mm
- Thickness: 12 mm
- Weight: 7.4 kg
- Insets: 3/10/35 mm
- Backsets: 600/610/616/620/635/700/900/950 mm
- Bolt Recesses: 4
- Bolt Recess Centres: 175 mm
- Corner Radius: 40/100 mm
- Peninsular Radius: 400 mm
Requires:
- Guide Bush: 30 mm
- Router Cutter: 12.7mm dia. x 50 mm length
- Plunge Router: 1/2inch
- F-Clamps: min. 80 mm throat x 2
Uses:
- Adjustable lock routing jig for mortice and faceplate recesses
- Accommodates a wide range of lock and latch sizes
- Provides clean, accurate router guidance on doors
- Infinite sliding adjustment for unusual lock dimensions
- Useful with plunge routers for consistent results
- Ideal for carpentry and door fitting applications
