Trend Mortise and Tenon Jig for Perfect-Fitting Joints, Ideal for Furniture Construction, Fully Adjustable for Compound Angle Joints, Includes US-Style Screw-On Guide Bush, MT/JIG

PRODUCT DETAILS

Click an item to expand and learn more

• Overview

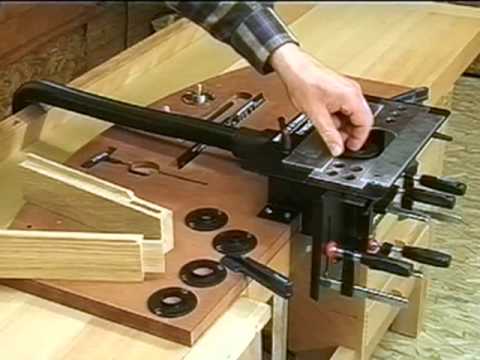

  Achieve perfect-fitting joints with the Trend Mortise and Tenon Jig, designed for versatile joint cutting in furniture construction. This jig allows you to cut precise mortise and tenon joints for cabinets, chairs, and tables using a plunge router, all with a single setup for both pieces. It features a fully adjustable design for compound angle joints, with a reversible template that produces both round and square end tenons, and an angle bar that rotates from -10° to 45° for flexible joint configurations. Capable of cutting materials from 1/2 inch to 1 7/8 inches thick and up to 3 1/2 inches wide, it’s perfect for both large furniture projects and smaller crafts. The jig includes a US-style screw-on guide bush, specifically designed for US routers (router not included), ensuring accurate doweling applications with an adjustable base for angled joints. Elevate your woodworking projects with this essential tool for precision and ease.

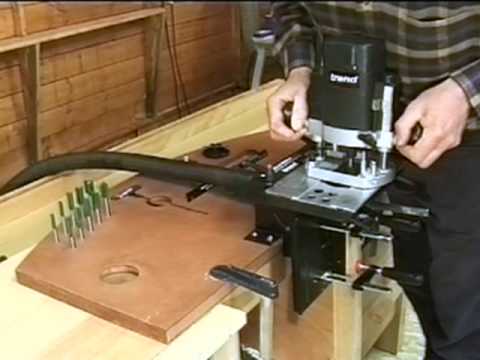

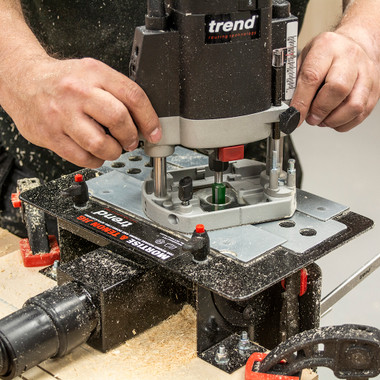

  Enables mortise & tenons and dowel joints to be cut with a plunge router.

  • Ideal for cabinet, chair and table construction. One set-up for both mortise and tenon giving perfectly fitting joints.
  • Cuts mortise & tenon sizes of 1/4 to 5/8. Fully adjustable for compound angle joints up to 45 degrees.
  • Reversible templates to produce round and square end tenons.
  • Templates can be used for accurate dowelling applications.

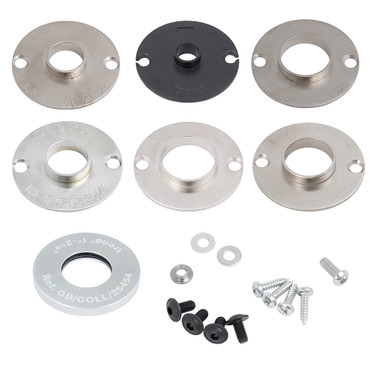

  • Includes screw-on style guide bushes.
  • Router not included.

  Specifications

  • Material thickness min: 1/2"
  • Material thickness max: 1 7/8"
  • Tenon thickness min: 3/16"
  • Tenon thickness max: 5/8"
  • Tenon width max. using vertical guide+: 3 1/2"
  • Tenon length max.++: Approx. 1"
  • Mortise length max. using vertical guide+++: 3 1/2""
  • Angle tilt compound: -10 degree to 45 degree

  Uses

  • Replacement for traditional joinery methods
  • furniture construction
  • cabinet making
  • chair and table assembly
  • precise mortise and tenon joints
  • compound angle joints
  • woodworking projects
  • accurate doweling applications
  • versatile joint cutting
  • suitable for thick materials
  • adjustable for various joint designs
• Reviews
• Questions and Answers
• Manuals

  Download Manual Instructions PDF

  Download Manual Instructions PDF

  Download Safety Sheets PDF

  Download Safety Points PDF

• FAQ

  What is the deepest tenon jig?

  1/4 (6.35mm) mortise max depth 26mm|5/16 (8mm) mortise mx depth 35mm|3/8 (9.5mm) mortise max depth 38mm|1/2 (12.7mm) mortise max depth 38mm|5/8 (15.9mm) mortise max depth 40mm.

  What cutters are required for use with the MT/JIG?

  In the UK and America, jigs work in imperial sizes the cutter set required is SET/MT1X1/4TC, SET/MT1X8MMTC. For jigs set up in millimetres the cutter set required is SET/MT2X8MMTC.

  Is the Trend Tenon Jig suitable for angled joints?

  Yes, it cuts tenons up to 45 degrees.

  Do you get any cutters supplied with the Trend Tenon Jig?

  No. There is a set available as a separate item.

  What is the maximum thickness of material that can be used with the Trend Mortise & Tenon Jig?

  47mm.

  Will the Trend Mortise & Tenon Jig cut different sized tenon widths?

  Yes. 8 different tenon sizes are possible.

  What size material can be used with the Mortise & Tenon jig?

  The max timber sizes are 50mm x 140mm
