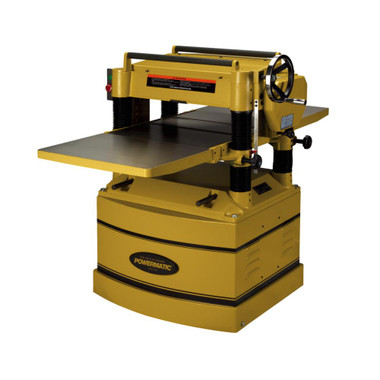

This heavy duty Planer offers performance and value, loaded with standard features not found on other machines in its class. The powerful 5HP motor and 20" planing capacity will handle the most demanding work. The helical cutterhead provides quieter operation and finer finishing than conventional systems, and the 100 four-sided carbide knife inserts seat themselves without requiring a set-up gauge. The 5" dust port connects easily to any dust collector. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The solid cast iron base, table and head are designed for production. The 2-speed oil bath gearbox transmits full power to feed rollers and facilitates fast speed changes at 24 and 31 FPM. The gearbox can be changed to 4-speed with the included gear to run lower speeds of 16 and 20 FPM. The corrugated infeed and fine groove outfeed rollers ensure a smooth feed. The precision ground and polished cast iron table rides on four steel columns giving it plenty of support for the larger workpiece. Heavy cast iron extension wings ensure a flat, smooth cut.
Features
- Cast iron head
- Cast iron table with extensions creates a big 55-1/2" x 20" working area
- Chip breaker and pressure bar assists to reduce snipe
- Chrome-plated, ergonomic handwheel makes adjustments smooth and easy
- Feed rollers and cutterhead supported by full cast iron head assembly
- Feed rollers and cutterhead supported by full cast iron head assembly for rigidity
- Fully enclosed base cabinet with integrated casters for shop mobility
- Serrated steel infeed roller and smooth steel outfeed roller allows for 1/8" maximum depth of cut and trouble-free operation
- The helical cutterhead with 100 four-sided carbide knife inserts provides smoother, quieter cutting and finer finish than conventional systems
Specifications
- Stock Number: PM9-1791316
- Cuts Per Minute: 20,000
- Cutterhead Diameter (In.): 3-3/16
- Cutterhead Speed (RPM): 5000.0000
- Dust Collection Minimum CFM Required (CFM): 900
- Dust Port Outside Diameter (In.): 5
- Feed Rate (FPM): 24/31
- Maximum Depth of Cut (In.): 3/32
- Maximum Full Width Depth of Cut (In.): 3/32
- Maximum Planing Thickness (In.): 8
- Maximum Planing Width (In.): 20
- Minimum Planing Length (In.): 6-3/4
- Model Number: 209HH
- Motor Phase: 3
- Motor Power (HP): 5
- Motor Voltage (V.): 230/460
- Prewired Voltage (V.): 230
- Prop 65: Cancer and Reproductive Harm
- Style (Type): Floor
- Table Size (L x W) (In.): 25-3/4 x 20
- Table Support: 4 Column
- Type of Cutterhead: HELICAL
- Warranty: 5 Year
- Gross Weight: 840.0
- Net weight: 800.0
Uses:
- Smoothing rough lumber for furniture making
- Creating uniform thickness in woodworking projects
- Planing large wooden boards for tabletops
- Preparing wood for intricate joinery work
- Resizing doors and adjusting thickness for custom fits
- Flattening wooden panels for cabinetry construction
- Producing custom wooden beams for construction projects
- Refinishing and repurposing old wood planks
