The POWERMATIC® 43" Wide Belt Sander delivers the utmost performance in measurement and sanding, creating a flawless finish every time. The Sander has centralized controls which allow the user to access all the needed buttons on one simple panel for more convenience. The variable speed feed belt allows the user to accurately dial in the exact feed speed to best suit each project and work environment. The sander also features a special digital readout control. This element is especially helpful because it will show the exact thickness of the finished piece or will allow the user to preset exactly what thickness they would prefer the finished piece to be. The sander also includes a unique measuring device, the auto thicknesser, that will capture the piece of wood to give the user an exact measurement of the starting thickness. The POWERMATIC® 43" Wide Belt Sander has an air-eye system which controls the oscillation for the 43" x 75" sanding belt. This prevents the belt from running off the end of the drums and uses the sanding surface in a more uniform manner. This also ensures sanding lines will not be left on the work piece. The 43" wide belt sander also has a powerful three motor system for maximum performance. The first motor system allows for maximum horsepower to feed the drive drums. A second, smaller motor, directly powers the VS feed belt and a third, smaller motor, powers the feed table up and down to the desired thickness automatically and with ease. For safety, the Sander has a disc brake, which slows the machine quickly and stops it instantly in the event of an emergency.
Features

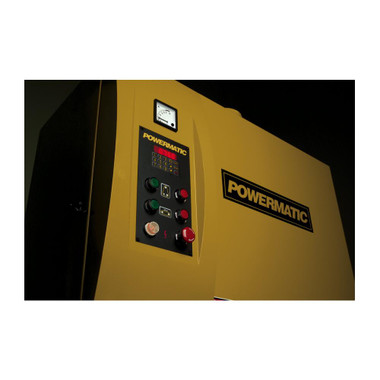

- Centralized controls allow you to access all the needed buttons on one simple panel
- Digital readout will show the user the exact thickness of the finished piece, or will allow you to preset exactly the thickness you prefer for the finished piece
- Includes 2 Sanding belts, 100 and 180 Grit
- The auto thicknesser will capture the piece of wood to give the user the exact starting thickness
- Disc brake slows the machine quickly and will activate immediately to stop machine in an emergency
- The pneumatic sensor system controls the sanding belt oscillation to prevent the belt from running off the ends of the drums, as well as use the sanding surface more uniformly without leaving sanding lines on the workpiece
- The three motor system allows for maximum horsepower to independently power the sanding drums, the variable speed feed, and the feed table movement.
- The variable speed feed belt allows you to accurately dial in the exact feed speed to best suit your project
Specifications
- Stock Number: PM9-1790843
- Air Required: 75 - 80
- Dust Collection Minimum CFM Required (CFM): 1,900
- Dust Port Outside Diameter (In.): 5
- Feed Motor Power (HP): 2
- Maximum Board Thickness (In.): 6
- Maximum Board Width (In.): 43
- Minimum Board Length (In.): 12
- Minimum Board Thickness (In.): 1/8
- Model Number: WB-43
- Motor Phase: 3
- Motor Power (HP): 25
- Motor Voltage (V.): 230/460
- Prewired Voltage (V.): 230
- Prop 65: Cancer and Reproductive Harm
- Sanding Belt Speed (FPM): 2,625
- Style (Type): Wide Belt Sander
- Warranty: 5 Year
- Gross Weight: 2550.0
- Net weight: 2430.0
Uses:
- Refinishing old furniture to restore its original beauty
- Sanding down wooden floors for refinishing or repair
- Smoothing out rough wood surfaces for cabinetry and carpentry projects
- Preparing wooden decks for staining or sealing
- Sanding large wooden surfaces quickly in commercial woodworking operations
- Evening out wood panels for large-scale construction projects
- Removing old paint or varnish from wooden surfaces before applying new finishes
Download Manual Instructions PDF
