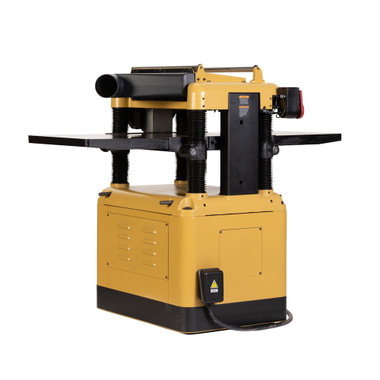

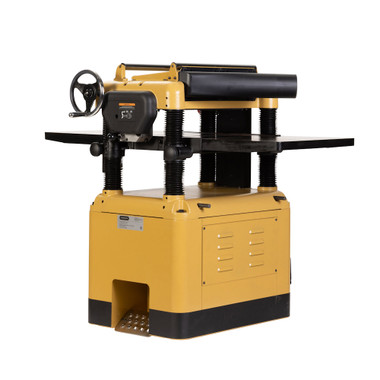

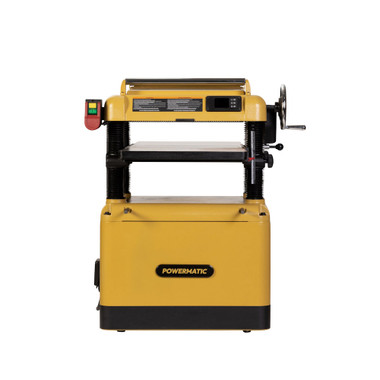

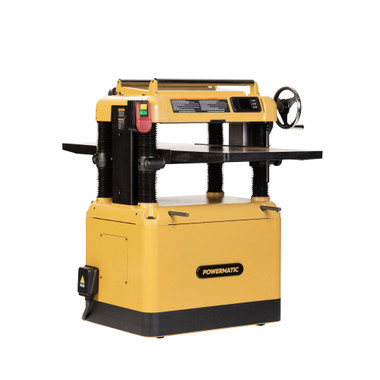

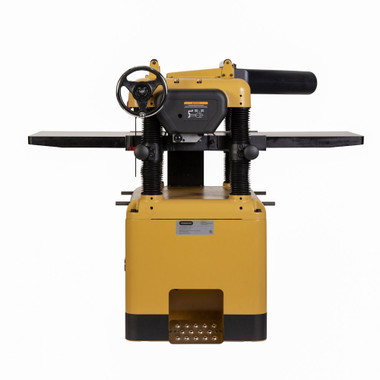

Powermatic 209BHH 20" Helical Head Thickness Planer – Single-Phase Power, Industrial Capacity
The Powermatic 209BHH is a heavy-duty 20-inch stationary thickness planer designed for professional woodworking shops, cabinet makers, and furniture manufacturers that require greater capacity than traditional 15-inch planers. Powered by a robust 5 HP, 230V single-phase motor, the 209BHH delivers the cutting power needed to process wide panels, thick stock, and dense hardwoods without sacrificing performance.
Its four-row helical cutterhead features 68 four-sided carbide inserts operating at 5,200 RPM, producing exceptionally smooth surfaces with reduced tearout and significantly quieter operation than conventional straight-knife cutterheads. Individual inserts can be rotated or replaced independently, reducing maintenance costs and minimizing downtime.
The integrated digital readout (DRO) provides accurate, repeatable thickness measurements for consistent results across operators and production runs. Dual feed speeds of 16 FPM and 28 FPM allow users to choose between premium finish quality and faster material removal, making the machine equally suited for finish planing and high-volume stock preparation.
Large cast iron infeed and outfeed tables provide a combined 51-1/2-inch support surface that resists flexing and dampens vibration when handling oversized workpieces. A 4-inch bi-directional dust port supports flexible dust collection configurations and efficient chip evacuation with a minimum airflow requirement of 900 CFM.
Enhanced safety and usability features include an oversized emergency stop button and an upgraded caster locking and braking system for secure operation and convenient repositioning. Replacing the popular 209HH, the Powermatic 209BHH is backed by an industry-leading 5-year warranty for long-term confidence in demanding shop environments.
Features
- 20-inch planing capacity handles wide panels, glued-up assemblies, and oversized workpieces.
- Powerful 5 HP single-phase motor delivers reliable performance on dense hardwoods and production workloads.
- Four-row helical cutterhead with 68 carbide inserts produces smoother finishes with reduced tearout.
- Four-sided carbide inserts can be individually rotated or replaced for low-cost maintenance.
- Built-in digital readout (DRO) ensures precise, repeatable thickness settings.
- Dual feed rates of 16 FPM and 28 FPM optimize either finish quality or production speed.
- Heavy-duty cast iron tables provide rigidity, stability, and vibration reduction.
- 4-inch bi-directional dust port allows flexible dust collection routing.
- Oversized emergency stop button improves operator safety and accessibility.
- Upgraded caster locking and braking system provides mobility with secure positioning.
- Designed for professional cabinet shops, furniture builders, and commercial woodworking operations.
- Backed by Powermatic's industry-leading 5-year warranty.
Specifications
- Model Number: 209BHH
- SKU: PM1-478
- Motor: 5 HP, Single Phase
- Input Power: 230V Single Phase
- Prewired Voltage: 230V
- Motor Amps: 20A
- Recommended Circuit Size: 40A
- Cutterhead Type: Helical Head
- Cutterhead Diameter: 3-1/4 in.
- Cutterhead Speed: 5,200 RPM
- Number of Inserts: 68
- Insert Size: 0.59 in. x 0.59 in. x 0.10 in.
- Maximum Planing Width: 20 in.
- Maximum Board Thickness: 8 in.
- Maximum Full-Width Depth of Cut: 3/32 in.
- Feed Rates: 16 FPM / 28 FPM
- Number of Speeds: 2
- Digital Readout: Yes
- Table Material: Cast Iron
- Table Size: 51.5 in. x 33.5 in.
- Table Adjustment: Manual
- Dust Port Diameter: 4 in.
- Required Dust Collection: 900 CFM Minimum
- Net Weight: 606 lbs.
- Gross Weight: 704 lbs.
- UPC: 019907006046
- Warranty: 5 Year
- Prop 65 Warning: Cancer and Reproductive Harm
Ideal Uses
- Planing wide hardwood and softwood boards up to 20 inches in width.
- Surfacing large glued-up panels, tabletops, countertops, and workbench tops.
- Furniture manufacturing requiring consistent thickness and superior finish quality.
- Cabinet production involving doors, face frames, panels, and casework components.
- Processing rough-sawn lumber into dimensioned stock for woodworking projects.
- Commercial woodworking and millwork operations handling high-volume material preparation.
- Finish planing premium hardwoods where minimizing tearout and sanding is important.
- Professional shops requiring industrial performance on standard 230V single-phase power.
- Production environments seeking repeatable thickness control across multiple operators.
- Woodworkers upgrading from 15-inch planers for greater capacity and throughput.
-
-
