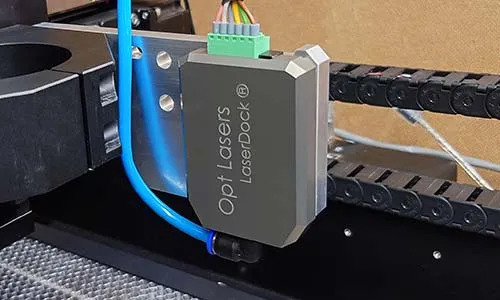

LaserDock PRO: Effortless Attachment for CNC Laser Heads
Snap your laser on/off in seconds with magnetic precision and integrated air/power. Auto-disconnect protects against Z-axis bumps, while gold-plated spring pins and position-locking give repeatable alignment. Compatible with all current and future heads, it’s a tidy, future-proof mount. Hard-anodized aluminum ensures durability in shop environments.
Adjustable, Microscopic & Square Beam Spot 25 - 500 DPI - The XT-50 laser heads have adjustable beam spots, below 50µm at perfect focus. Adjusting the height increases the spot size up to 2mm, enabling Ultra HD resolution over 500 DPI or large-scale engraving down to 25 DPI.
LaserDock PRO Features and Functionalities

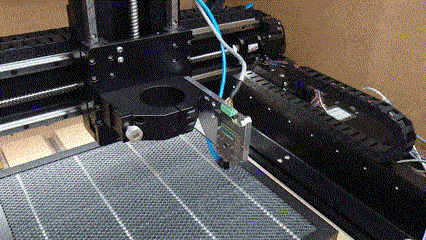

Rapid Attachment and Removal: The LaserDock PRO allows you to swiftly mount and dismount laser heads in seconds, ensuring quick setup and efficient workflow. When not working with the laser, simply cover the CNC side with the included LaserDock PRO cover to keep everything tidy and protected.
Protection Against Collisions: The LaserDock PRO features an automatic disconnection system that prevents dangerous collisions, particularly in the z-axis. In the event of unexpected movement, the laser head disengages to protect both the equipment and operator. The electrical pins also safely disconnect during emergency detachment, ensuring a secure and safe working environment.

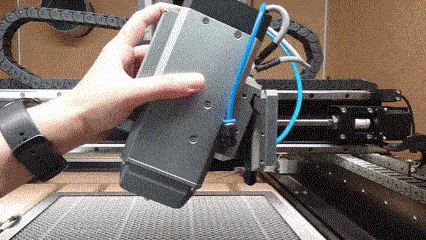

One LaserDock, Many Possibilities: Responding to customer requests, the LaserDock PRO is designed to be fully compatible with all our laser heads, including both current and future models. This versatility ensures that you can seamlessly switch between different lasers, whether it’s the XF+, XT-50, or XT8, making it easy to transition between tasks like fast cutting with the XT8 and precise engravings with the XT-50. This provides an efficient workflow and maximum flexibility.
Future-Proof Laser Head Mounting Capability: The LaserDock PRO is designed with future-proofing as a key feature, ensuring compatibility with upcoming laser models in our product line. Its robust design accommodates a range of laser head weights, providing stability and reliability across various CNC applications. This forward-thinking approach ensures that the LaserDock PRO remains adaptable and valuable as technology evolves, offering long-term performance and flexibility.

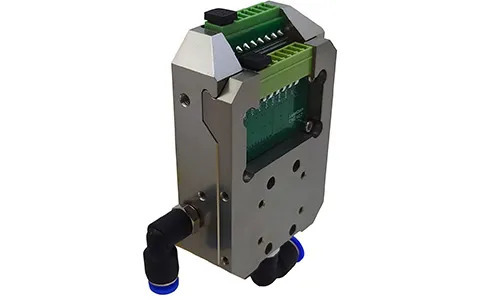

No Hassle with Air Hoses: The LaserDock PRO is equipped with a streamlined air assist connection, allowing for easy integration of compressed air directly to the dock. This feature simplifies setup and improves efficiency, keeping the workspace organized with minimal tubing—an advantage not offered by our competitors.

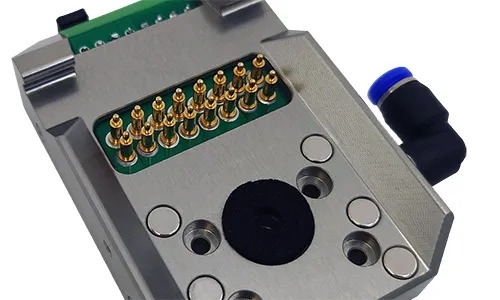

Long Lifespan: The LaserDock PRO features an array of gold-plated, spring-loaded pins that do not extend beyond the station, providing redundancy in case of pin failure. This design ensures reliable electrical connections with enhanced conductivity, corrosion resistance, and long-term durability. Additionally, the increased number of pins supports high-power laser heads, delivering consistent performance and reliability over time.
Fit Every CNC Machine or Robot: The LaserDock PRO’s magnetic docking station features an advanced position-locking system for precise, stable anchoring of laser heads. This ensures accurate repositioning and includes a hole for a safety cable to prevent accidental falls, making it ideal for robotic setups.
Even More Durable: LaserDock PRO's hard anodized aluminum design offers both durability and corrosion resistance. Its sturdy yet lightweight frame ensures long-lasting performance and easy handling, making it ideal for industrial and professional CNC applications.
LaserDock PRO and LaserDock PRO Laser Side / CNC Side units purchased before 2025 (with 8 pins instead of 16) are not compatible with the current version. If you are unsure which version you have, please check the gold pins.
-
-
