Mafell's DD40P Duo Dowel jointer has triggered a revolution in portable joining as the only portable dual dowelling machine on the market. Never has it been easier to make strong joints when fastening pieces of wood together no matter whether the joints are butted, mitered or beveled together.

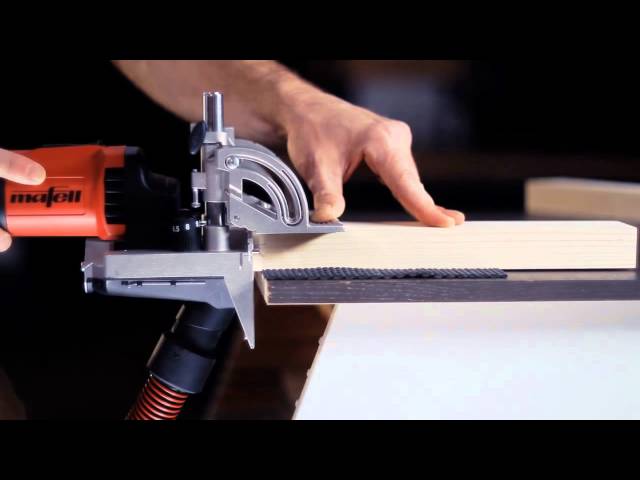

Each plunge of the DD40P makes a pair of holes into which conventional dowels are pressed. The stop system allows for accurate placement of the holes so that the companion piece is perfectly aligned. Assembly is easy and can be pre-fitted prior to gluing. No clamping is necessary. The DD40 system is faster, more precise and less expensive than any of its rivals.

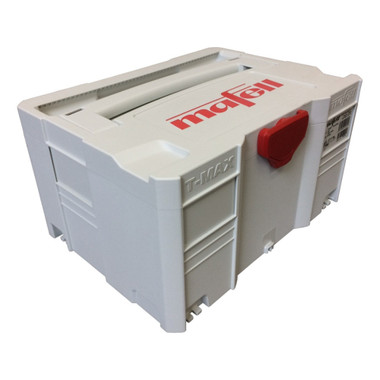

This tools comes standard with a Mafell T-MAX case, wooden dowels, a glue bottle, anti-slip mats and drill bits. An optional 2.6' Drilling Template makes it easy to construct precise dowel holes for shelving systems.
Specifications
- Drilling depth: 0 to 1-9/16"
- Drill bit spacing: 1-1/4" (32mm)
- Tilt range: 0 to 90°
- Chuck diameter: 5/16"
- Maximum bit diameter: 5/8"
- Minimum bit diameter: 3/16"
- Nominal speed - no load: 13,500 rpm
- Motor: 120 V / 60Hz
- Current: 8.3 A
- Weight: 6.2 lbs
Standard Equipment
- Two 8mm Hardened Steel Drill Bits (~5/16")
- Two 10mm Hardened Steel Drill Bits (~3/8")
- Two 12mm Hardened Steel Drill Bits (~1/2")
- 8 x 30mm Dowels (200 Pieces)
- 10 x 40mm Dowels (100 Pieces)
- 12 x 60mm Dowels (40 Pieces)
- Two Anti-Slip Mats
- 8.4 fl oz Empty Glue Bottle
- 5/16" Dowel Nozzle
- Allen Key with Handle
- Auxiliary Stops
- 13.1 ft Cord
- T-MAX Carrying Case
Accessories
- Drilling Template reaches 2.6 feet and comes with quick clamping device
- Template Extension makes the drilling template 5.2 feet longer and requires the Extension/Flexi Clamp and Screw Clamp with Thread
Uses:
- Cross-cutting hardwoods
- Ripping softwoods
- Cutting plywood sheets
- Trimming laminate flooring
- Sizing veneered panels
- Cutting MDF boards
- Slicing through melamine
- Making joinery cuts in cabinetry
- Cutting plastic composite materials
- Creating clean edges on panel goods
Download Brochure PDF
MAFELL Duo-Dowel System DD40
