Laguna MRS5000-0280 RS|12 Straight Line Rip Saw

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  RS|12 Straight Line Rip Saw

  The RS|12 is the perfect machine for production ripping operations. Automatic feed and centralized lubrication top the list of features on this machine. Optional laser guide system available.

  Features:

  • Overhead Controls: Standard
  • Lubrication System: Centralized Automatic
  • Variable Speed: 30 – 112 ft/min
  • Min. Work Length: 6-1/2″
  • Blade Capacity: 10″ – 12″

  Specs & Details

  • Arbor Size: 1″
  • Power: 220V – 3 Phase
  • Main Motor: 15 HP
  • Maximum Work Thickness: 3-⅞″
  • Hold Down Rollers: 4
  • Dust Port: 4″
  • Feed Chain: 6″ High Grip
  • Blade To Frame: 18″
  • Weight (Net): 2,420 lbs
  • Shipping Dimensions (L x W X H): 60″ x 48″ x 62″

  Uses

  • Production ripping operations
  • Automatic feed
  • Straight line ripping
  • Processing wood stock
  • High-volume woodworking production
• Reviews
• Questions and Answers
• Manuals

  Download Manual Instructions PDF

• Videos

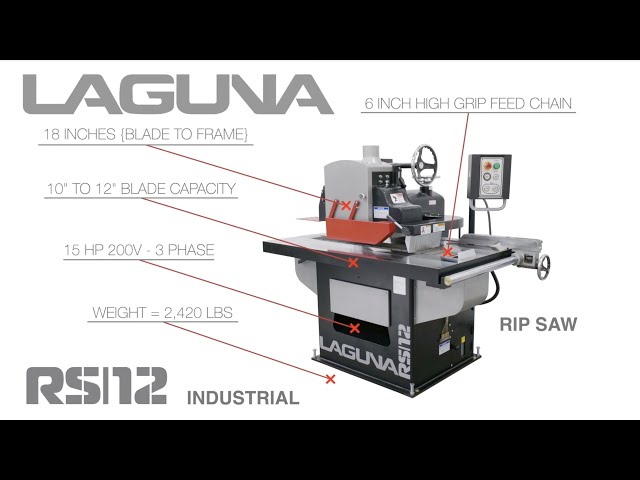

  Introducing the RS12 Straight Line Industrial Rip Saw | Machine Overview
