Jetools JT9-708544 JWP-208HH-1: 20" PLANER 5HP 1PH, HELICAL

PRODUCT DETAILS

Click an item to expand and learn more

• Overview

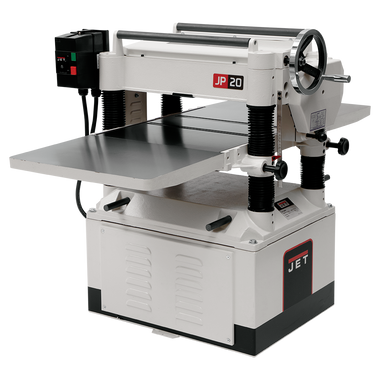

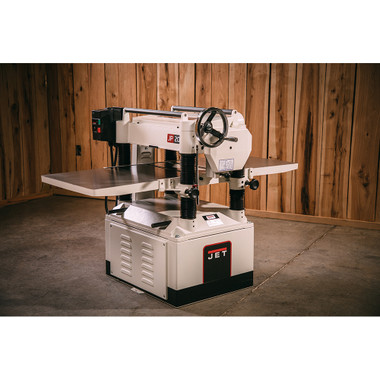

  JET JWP-208HH 20" Helical Head Planer – 5 HP, 1 Phase

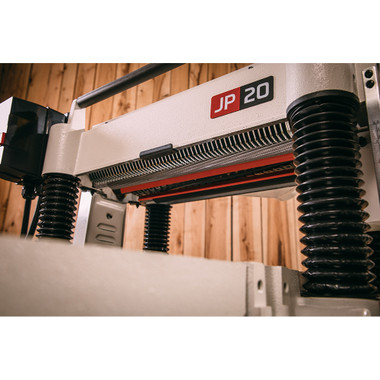

  The JET JWP-208HH 20" Helical Head Planer is built to efficiently turn rough lumber into smooth, accurately finished boards with a full 20-inch planing capacity. Powered by a 5 HP induction motor and equipped with a helical cutterhead featuring 92 blades, it delivers quiet operation and an excellent surface finish. Its heavy-duty cast iron table, welded steel base, and precision gear-driven table adjustment system provide outstanding stability and consistent cutting accuracy for demanding woodworking applications.

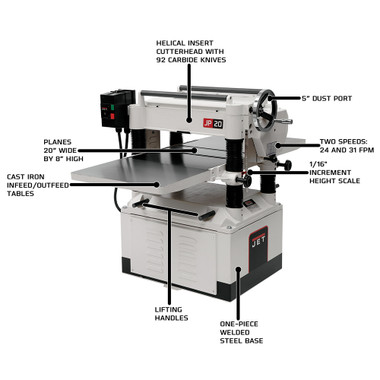

  Features

  5-year limited warranty

  Built-in dust collection port for efficient chip removal

  Machine-ground cast iron table provides excellent stability and cutting accuracy

  Positive gear drive system enables fast and precise table movement

  One-piece welded steel base delivers exceptional strength and stability

  Magnetic controls offer reliable, long-lasting performance

  Large handwheel with positive gear drive allows quick, accurate table height adjustments

  Includes cast iron infeed and outfeed tables

  1/16-inch increment height scale allows precise adjustment for fine cuts

  Three steel infeed and outfeed rollers help reduce snipe

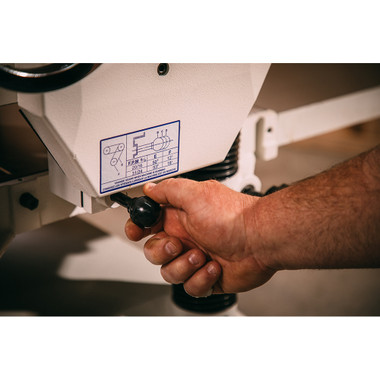

  Two-speed gearbox with automatic chain tensioner allows convenient feed rate adjustments

  Specifications

  Brand: JET

  Amperage: 12.5A

  Assembled Weight: 640 lbs

  Type: Stationary

  Blade Count: 92

  Blade Type: Helical

  Motor: Electric

  Horsepower: 5 HP

  Voltage: 230V

  Maximum RPM: 5000

  Maximum Planing Width: 20 in.

  Maximum Cutting Depth: 0.15625 in.

  Switch Type: Push Button

  Lock-on Switch: Yes

  Variable Speed: No

  Height: 23 in.

  Length: 8 ft

  Overall Weight: 837 lbs

  Color: Gray

  Country of Origin: Taiwan

  Product Condition: New

  Reversible: No

  CSA Certified: No

  ETL Listed: No

  UL Listed: No

  California Proposition 65 Warning: Yes

  Restrictions: CA Prop 65

  Package Includes: Planer, Dust Hood, 5" to 4" Dust Port Adapter, Infeed and Outfeed Tables, Necessary Hardware

  Warranty: 5-Year Limited

• Reviews
• Questions and Answers
• Manuals

  Download Manual Instructions PDF

  Download Specifications PDF
