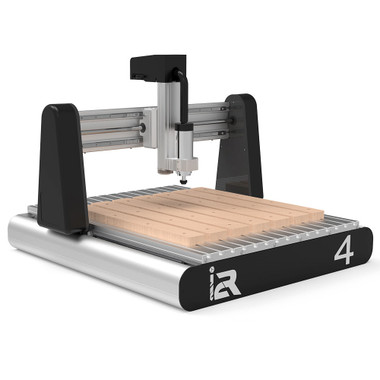

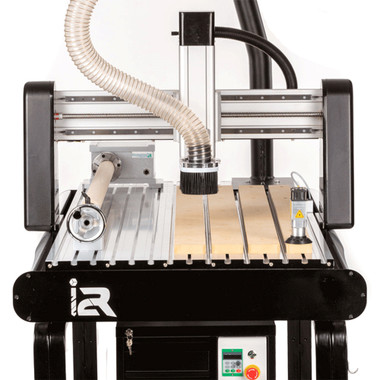

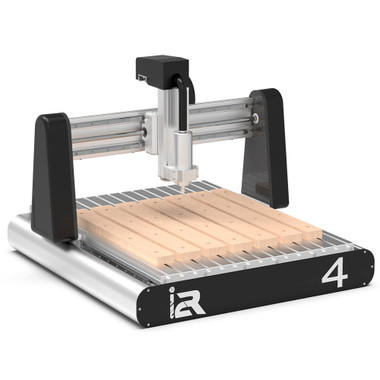

i2R CNC B22-1HP B Series 2' x 2' CNC Machine, 1HP Spindle

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  • 3-Axis CNC Table & Gantry
  • 1 HP Air Cooled Spindle (110V)
  • Integrated MDF Spoil-board
  • UCCNC Control Software for Windows PC
  • Control Box & Ethernet Cable
  • Z-Axis Automatic Touch Off Puck
  • Wrenches
  • Collets 1/4″ and 1/8″

  *PC / LAPTOP STAND SOLD SEPARATELY, PC NOT INCLUDED.

  TRAVEL:

  • X Axis Travel 48" ( 1220 mm )
  • Y Axis Travel 24" / 36" / 48"
  • Z Axis Travel 5.3"(135mm)
  • C Axis Travel 360 Degree

  SPINDLE:

  • Spindle Speed : 0~24000rpm
  • 1HP Air Cooled
  • 2HP Air Cooled
  • ER16

  MAXIMUM FEED RATE:

  • 150 IPM (3810mm/min)

  POWER REQUIRED:

  • 1HP 115V, 50-60 Hz, 13A 1-Phase
  • 2HP 220V, 50-60 Hz, 13A 1-Phase
  • Controller : UCCNC UCCNC Control Software (PC REQUIRED)

  MACHINE SPECIFICATIONS:

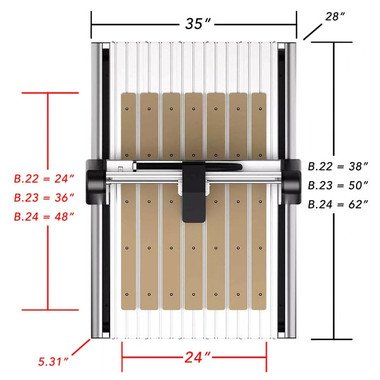

  • Machine Dimensions
    • 22 =38"L x 356"W x 28"
    • 23 =50"L x 35"W x 28"
    • 24 =62"L x 35"W x 28"

  • Shipping Dimensions
    • 22 =40"L x 38"W x 33"
    • 22 =55"L x 38"W x 33"
    • 22 =65"L x 38"W x 33"

  • Machine Weight
    • A22 : 176lbs
    • A23 : 209lbs
    • A24 : 242lbs

  LINEAR MOTION COMPONENTS:

  • HIWIN Profiled linear rail system size
  • Precision BallScrew X/Y/Z

  MACHINE CONSTRUCTION:

  • Working Table High rigidity Aluminum Extrusion
  • Gantry Bridge High rigidity Aluminum Extrusion
  • Gantry Supports Aluminum billet machined
  • Gantry Supports: FEA designed webbed upstand construction

  RESOLUTIONS & ACCURACY:

  • Positional Accuracy +/- 0.003" (0.1mm)

  CONTROLLER:

  • High voltage stepper controller system with full UCCNC control.

  ACCESSORIES (INCLUDED):

  • Tool Touch Off
  • MDF Spoilboard
  • Wrenches
  • Ethernet Cable

  AVAILABLE EXPANSION PORTS:

  • Compatible with air solenoid for coolant
  • Compatible with fixed touch off system
  • Compatible with OPT laser system
