i2R CNC A23-3HP A Series 2' x 3' CNC Machine, 3HP Spindle

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  Every Advanced Pack comes fully equipped and ready to go. Just install the UCCNC software package on your PC or laptop,* plug in and release your creativity.

  • 3-Axis CNC Table & Gantry
  • 3HP Air Cooled Spindle (210V)
  • Integrated MDF Spoilboard
  • UCCNC Control Software for Windows PC
  • Control Box & Ethernet Cable
  • Z-Axis Automatic Touch Off Puck
  • Wrenches
  • Collets 1/4″ and 1/2"

  *PC / LAPTOP STAND SOLD SEPARATELY, PC NOT INCLUDED.

  TRAVEL:

  • X Axis Travel 48" ( 1220 mm )
  • Y Axis Travel 24" / 36" / 48"
  • Z Axis Travel 5.9"(150mm)
  • C Axis Travel 360 Degree

  SPINDLE:

  • Spindle Speed : 0~24000rpm
  • 2.2KW (3HP) Water-Cooled Spindle
  • Included Collets ER20

  MAXIMUM FEED RATE:

  • 300 IPM (7620mm/min)

  POWER REQUIRED:

  • 220V, 50~60Hz, 13A, 1-Phase
  • Controller : UCCNC UCCNC Control Software (PC REQUIRED)

  MACHINE SPECIFICATIONS:

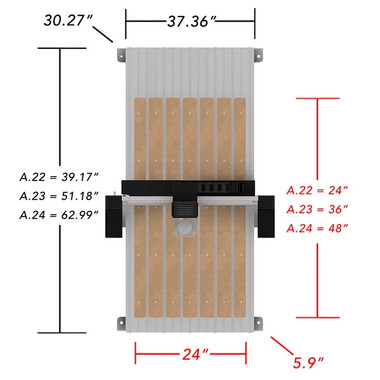

  • Machine Dimensions
    • A22 =39.17"L x 37.36"W x 30.27"
    • A23 =51.18"L x 37.36"W x 30.27"
    • A24 =62.99"L x 37.36"W x 30.27"

  • Shipping Dimensions
    • A22 =42"L x 39"W x 33"
    • A22 =53"L x 39"W x 33"
    • A22 =65"L x 39"W x 33"

  • Machine Weight
    • A22 : 320lbs
    • A23 : 360lbs
    • A24 : 405lbs

  LINEAR MOTION COMPONENTS:

  • HIWIN Profiled linear rail system size – a massive 20mm in X, Y, Z | 4 full carriages per axis
  • Precision BallScrew X/Y/Z

  MACHINE CONSTRUCTION:

  • Working Table High rigidity Aluminum Extrusion
  • Gantry Bridge High rigidity Aluminum Extrusion
  • Gantry Supports Aluminum billet machined
  • Gantry Supports: FEA designed webbed upstand construction

  RESOLUTIONS & ACCURACY:

  • Positional Accuracy +/- 0.003" (0.1mm)

  CONTROLLER:

  • High voltage stepper controller system with full UCCNC control.

  ACCESSORIES (INCLUDED):

  • Tool Touch Off
  • MDF Spoilboard
  • Wrenches
  • Ethernet Cable

  AVAILABLE EXPANSION PORTS:

  • Compatible with air solenoid for coolant
  • Compatible with fixed touch off system
  • Compatible with OPT laser system
