The OF 1400 Router provides 1400 watts of power in a machine that weighs less than 10 lbs. It accepts 1/2", 1/4" or 8 mm bits. With enough power to handle most routing tasks and small enough to be extremely maneuverable, the OF 1400 is the one router every tradesperson should own. With a category-leading 2 3/4" plunge depth, precise to 1/256" (1/10 mm), this router gives you the power, precision, depth of cut, and dust extraction capabilities that will simplify your routing tasks.
- Dual‑sided guide column clamping provides ridgid stability, keeping the router steady for optimum accuracy on every pass.
- Swap template guides and base plates tool‑free, so you can move effortlessly between different tasks without slowing down.
- The spindle stop with ratcheting action makes bit changes quick and simple.

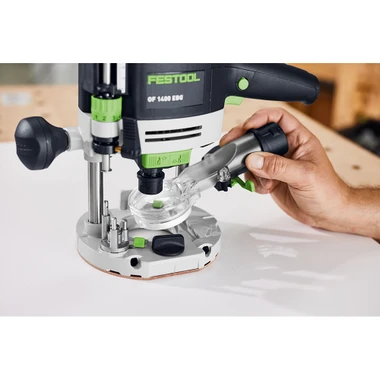

- The dust extraction hood's integrated LED light ring illuminates your work area perfectly, ensuring you see every detail as you cut.
- Fine depth adjustment is simple and accurate to 1/256 " (1/10 mm), with a generous 3/4" (20 mm) range for maximum control.
- Achieve up to 99% dust extraction with the chip catcher and dust hood keeping edges sharp and your work area cleaner.
- MMC Electronics maintain constant speed for smooth routing action and reliable cut quality across materials.
Main applications
- Rounding, chamfering, rabbeting, and profiling edges
- Routing with the routing aid to place centered grooves
- Routing solid surface material
Specifications
- Power consumption: 1 400 watt
- Idle engine speed: 10 000 - 22 500 RPM
- Routing stroke: 2-3/4" (70 mm)
- Weight: 10.36 lbs (4.6 kg)
- Routing depth fine adjustment range: 5/16" (8 mm)
- Drive type: 120 VAC
- Collet dia.: 1/4" - 1/2" (6 - 12.7 mm)
- Dust extraction connection dia.: 1-1/16"/1-7/16" (27/36 mm)
- Bench opening: 2-1/2" (63 mm)
- Cable length: 13.123 ft (4 m)
Noise and vibration values
- Routing: Uncertainty (vibration) K: 1.50 m/s²
- Routing: Uncertainty (noise) K: 1.50 dB
- Routing: Total vibration average, Ah: 2.50 m/s²
- Routing: Standards series EN: 62841-2-17
- Routing: A-weighted sound pressure level, LpA: 98.00 dB(A)
- Routing: A-weighted sound power level, LWA: 106.00 dB(A)
Uses
- Creates precise grooves, dadoes, and rebates.
- Shapes decorative profiles on wood edges.
- Performs template routing with high accuracy.
- Suitable for cabinetry and furniture making.
- Supports joinery and edge finishing applications.
- Provides versatile routing for workshop projects.
