PRODUCT DETAILS
Click an item to expand and learn more
-
CT-ASA FLX J Boom arm
For CT 26 to 48

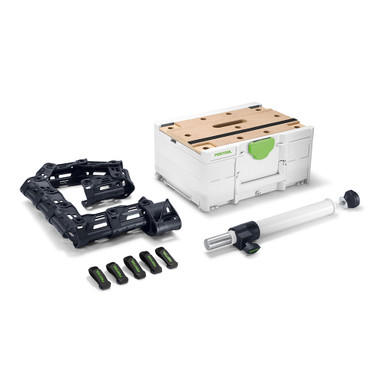

Contains
3 Articles
- Systainer SYS-MFT 187
- telescopic tube including fixing screw
- Hook-and-loop fastener KV-215/5
Functions

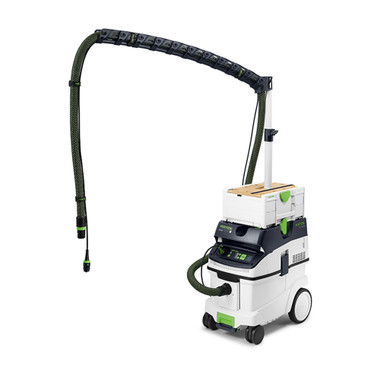

The mobile dust extraction arm for the construction site. This is what modern dust extraction looks like: The flexible, top-guided extraction arm ensures a clear path - no snagging, no tripping. Thanks to the modular chain links and telescopic tube, it adapts to any work situation. It is compactly stowed in the Systainer and quickly mounted on the vacuum cleaner or MFT. Simply unroll, attach and get started - for ergonomic, clean work with maximum comfort.
- Hose guide from above: Ergonomic, comfortable working without tripping or getting caught.
- Space-saving: The extraction arm can be rolled and stowed in the Systainer.
- Clever combination: The flex arm is supplied in the SYS-MFT. This allows the extraction arm and telescopic tube to be securely fixed to the vacuum cleaner.
- Height-adjustable: the telescopic tube can be adjusted in height.
- Variable attachment: The flex arm can also be attached directly to the MW 1000 mobile workshop or an MFT multifunction table using the telescopic tube.
- Easy to set up: Unroll, attach, get started.
- Tidy: integrated cable routing, can be fixed with Velcro straps.
- Quick machine change: plug it cable on the tools enables quick device changes.
- Robust: Made from ten high-quality, lightweight plastic links.
- Flexible length: The 1 m long flexible arm can be shortened as required using easily removable chain links.
- SYS-MFT: Lid with MFD plate for clamping and fixing workpieces.
- flexible extraction arm for attachment to the mobile extraction unit
Technical data
- Product weight without accessories: 4.90 kg
- Length: 1.00 m
- Telescopic tube length: 630.00 mm
- Overall height incl. Systainer: 1.05 m
Key Features
Ergonomic hose guide from above. For comfortable working during longer sanding, sawing or routing jobs: The flexible extraction arm is guided from above so that the hose and cable are not in the way or get caught up. More comfort, no tripping. This is how efficient dust extraction works today.
Fits perfectly. Thanks to modular, lightweight chain links made of robust plastic, you can easily adjust the length of the extraction arm. The telescopic tube allows individual height adjustment. The swivelling extraction arm provides more space when working.
Mobile in the system. Neatly rolled up in the SYS-MFT Systainer, you can take the flexible arm with you to any construction site. There it can be easily attached to a suction cup. It can also be attached directly to the MW 1000 mobile workshop or any MFT. Simply unroll, attach and get started.

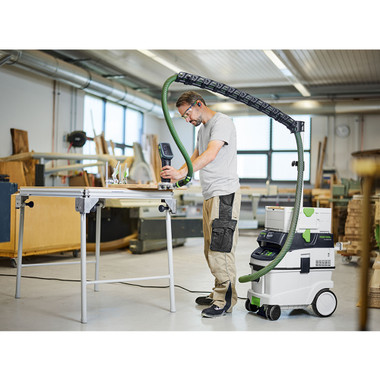

Hose guide from above The flexible, top-guided extraction arm ensures ergonomic, comfortable working without tripping or getting stuck.

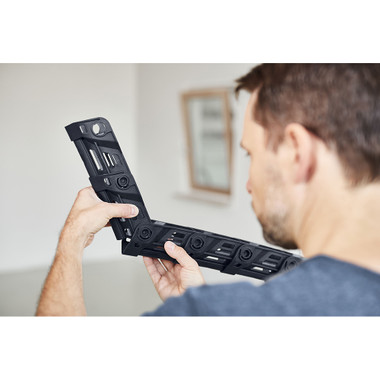

Rolled up and stowed in the Systainer Thanks to the modular arrangement of the links, the extraction arm can be rolled and stored in the Systainer.

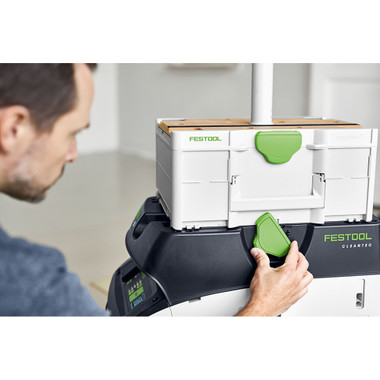

Cleverly combinable The flexible arm is supplied in the SYS-MFT. This allows the extraction arm and telescopic tube to be securely fixed to the vacuum cleaner via T-LOC.

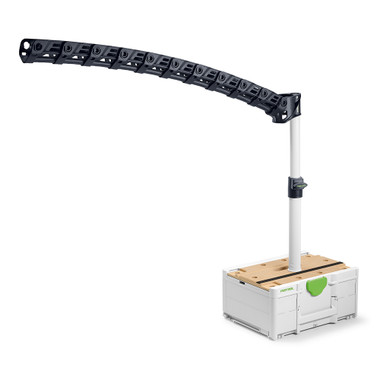

Variable height, secure hold The height of the telescopic tube supplied can be individually adjusted. This allows the extraction arm to be securely attached to the SYS-MFT. Or directly on the MW 1000 mobile workshop or an MFT multifunction table.

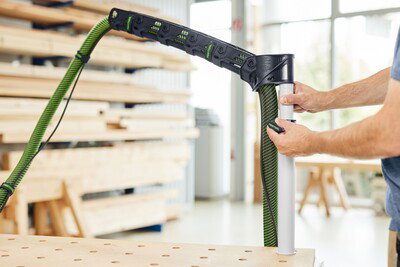

Organised The hose and power cable are routed inside the extraction arm. Both can be attached to the chain links using Velcro straps.
Quick machine change The plug it cable on the tools allows you to change tools quickly.
Flexible length The 1 m long flexible arm can be adjusted as required for your purposes. The robust chain links can be easily separated and rejoined.
SYS-MFT The Systainer lid has an MFD perforated plate. For clamping and fixing workpieces and for attaching the extraction arm using the telescopic tube.
Uses
- Ideal for working at mobile stations, e.g. for sanding work.
- Overhead hose and cable management on the MFT multifunction table to prevent tripping and snagging.
- Flexible, mobile dust extraction on construction sites and throughout the workshop.
- Direct attachment to mobile extractors, MW 1000 mobile workshops, or MFT tables via the height-adjustable telescopic tube.
-
-
Download Manual Instructions PDF
