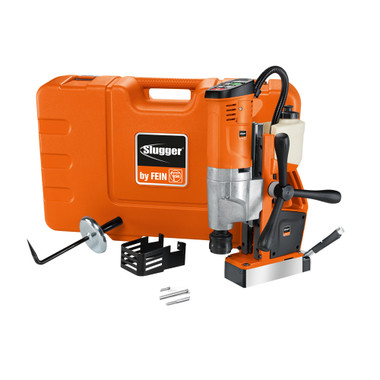

Universal Magnetic Core Drill up to 1-3/8 in [35 mm]
Small, long-stroke, 1-speed universal magnetic core drill with forward/reverse rotation, permanent magnet, and maximum functionality for safe and versatile work on the construction site. Designed for demanding drilling tasks, this magnetic core drill supports mag base drilling, twist drilling, tapping, countersinking, and reaming.
Details
This universal magnetic core drill features a permanent magnet for extremely safe work at heights, along with a pivoting motor cable protection sleeve and high-quality workmanship for tough jobsite use. Its lightweight, compact design and FEIN high-performance motor with tacho electronics deliver powerful torque and sustained work progress.
The machine includes an extra-large stroke for a wide range of drilling work, including mag base drilling, twist drilling, tapping, countersinking, and reaming. The extra narrow permanent magnet with magnetic bias provides secure positioning, while the motion sensor adds additional operating safety.
Additional features include a simple and error-proof control concept in the operator’s field of view, a convenient magnetic holding force indicator, forward/reverse operation, integrated coolant tank, memory function speed storage, and a hand feed wheel that can be mounted on either side.
Technical Data
Power consumption: 1,010 W
Power output: 550 W
Cutter holder: 3/4" straight shank
Full load speed: 130 - 520 rpm
Carbide cutter max. diameter: 1-3/8 in [35 mm]
HSS cutter max. diameter: 1-3/8 in [35 mm]
Cutter max. drilling depth: 2 in [50 mm]
Twist drill max. diameter: 5/8 in [16 mm]
Tapping: 1/2"
Max. countersinking diameter: 1-1/4 in [31 mm]
Reaming max. diameter: 5/8 in [16 mm]
Cutter change: Tool-free
Stroke: 5-5/16 in [135 mm]
Total stroke range: 10-1/4 in [260 mm]
Magnetic holding force: 2023 lbs [9,000 N]
Cable with plug: 13.1 ft [4 m]
Weight: 27.56 lbs [12.50 kg]
Vibration and Sound Emission Values
Sound pressure level LpA: 82.3 dB
Measurement uncertainty KpA: 5 dB
Sound power level LWA: 95.3 dB
Measurement uncertainty KWA: 5 dB
Peak sound value LpCpeak: 95.9 dB
Measurement uncertainty KpCpeak: 5 dB
Vibration value 1 αhv 3-way: <2.5 m/s²
Vibration value 2 αhv 3-way: 1.5 m/s²
Applications
Mag base drilling in metal up to 1-1/2" diameter: Well suitable
Twist drilling with drill chuck: Suitable
Tapping: Well suitable
Countersinking: Well suitable
Reaming: Well suitable
Performing overhead work: Well suitable
Installation work: Well suitable
Workshop jobs: Well suitable
Product Features
Magnet holding force display
Forward/reverse operation
Electronic speed setting
Memory function
Speed-controlled tacho electronics
Tilt sensor
Uses
- Construction site drilling
- Safe work at heights
- Overhead drilling
- Magnetic base drilling in metal
- Core drilling up to 1-3/8 in diameter
- Twist drilling with drill chuck
- Tapping applications
- Countersinking work
- Reaming applications
- Installation work
- Workshop jobs
- Steel fabrication
- Metal plate drilling
- Industrial maintenance work
- Precision drilling in tight work areas
