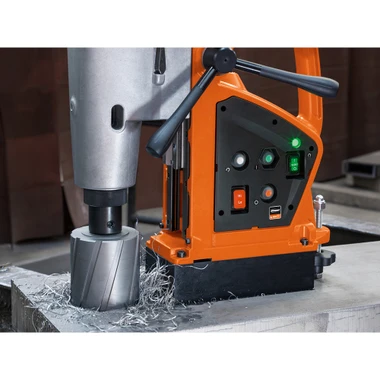

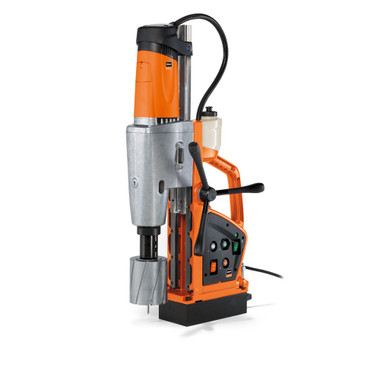

Universal Magnetic Core Drill up to 4-5/16 in [110 mm]
High-performance, long-stroke, 4-speed universal magnetic base drill with forward/reverse running, MT4 tool mounting, and maximum functionality for heavy drilling work in the workshop. Designed for demanding applications, this magnetic core drill is suitable for mag base drilling, twist drilling, tapping, countersinking, and reaming.
Details
This universal magnetic core drill is powered by a FEIN 1,700 W high-performance motor with high torque for heavy drilling work. Built for tough use, it features top-quality workmanship and a pivoting motor cable protection sleeve for added durability.
The machine includes an extra-large stroke for a wide range of drilling tasks, including magnetic base drilling, twist drilling, tapping, countersinking, and reaming. Its mechanical 4-speed gearbox provides versatile speed control, while the high magnetic holding force and torque arm support increased magnetic holding power.
Additional features include a motion sensor, torque slip clutch, magnetic holding force indicator, electronic speed setting, forward/reverse operation, MT4 tool mounting, and an integrated coolant tank to help extend core drill tool life. A Portable Residual Current Device (PRCD) safety switch is also included.
Technical Data
Power consumption: 1,700 W
Power output: 850 W
Cutter holder: Weldon 32
Load speed, 2nd gear: 90 / 170 rpm
Load speed, 3rd gear: 150 / 300 rpm
Load speed, 4th gear: 230 / 430 rpm
No-load speed, 1st gear: 100 / 190 rpm
No-load speed, 2nd gear: 160 / 290 rpm
No-load speed, 3rd gear: 270 / 500 rpm
No-load speed, 4th gear: 420 / 750 rpm
Tool mount: MT 4
Carbide cutter max. diameter: 4 in [101 mm]
HSS cutter max. diameter: 3 in [75 mm]
Cutter max. drilling depth: 4 in [101 mm]
Twist drill max. diameter: 1-3/8 in [35 mm]
Tapping: M 36
Max. countersinking diameter: 2-3/8 in [60 mm]
Reaming max. diameter: 1-3/8 in [35 mm]
Stroke: 11 in [280 mm]
Total stroke range: 15-3/4 in [400 mm]
Magnetic holding force: 5171 lbs [23,000 N]
Cable with plug: 13.1 ft [4 m]
Weight: 79.37 lbs [36.00 kg]
Applications
Mag base drilling in metal up to 1-1/2" diameter: Well suitable
Mag base drilling in metal up to 2" diameter: Well suitable
Mag base drilling in metal up to 2-9/16" diameter: Well suitable
Mag base drilling in metal up to 4-5/16 in [110 mm] diameter: Well suitable
Twist drilling with drill chuck: Well suitable
Twist drilling with MT fitting: Well suitable
Tapping: Well suitable
Countersinking: Well suitable
Reaming: Well suitable
Performing overhead work: Suitable
Installation work: Suitable
Workshop jobs: Well suitable
Product Features
Magnet holding force display
Forward/reverse operation
Electronic speed setting
Torque slip clutch
Tilt sensor
Uses
- Heavy-duty workshop drilling
- Large-diameter core drilling
- Structural steel drilling
- Magnetic base drilling in metal
- Twist drilling with drill chuck
- Twist drilling with MT fitting
- Tapping applications
- Countersinking work
- Reaming applications
- Steel fabrication
- Metal plate drilling
- Installation work
- Heavy equipment maintenance
- Industrial repair work
