3D Signmaking, Lettering & Engraving CNC Insert Solid Carbide V-Groove Router Bit Collections

Priced From
$215.82
-
$345.87
Free shipping on orders $49 and up
SEE OPTIONS BELOW
$239.80
$215.82
*Sort the Table by clicking on the Column Heading
DescriptionIncludes Tool #'sdBrandTool NoOur PriceWish ListReady To Buy
3-Pc V-Groove CNC Pack (Save 20%) See Chart Below*1/4
Amana Tool AMS-153 3-Pc 3D CNC Signmaking, Lettering & Engraving Insert SC 45, 60, & 90 Deg x 1/4 SHK V-Groove Router Bit PackMore infoAmana ToolAMS-153$239.80$215.82
Qty:
4-Pc V-Groove CNC Set (Save 20%) with Wood Storage BoxSee Chart Below1/2
Amana Tool AMS-150 4-Pc 3D CNC Signmaking, Lettering & Engraving Insert SC 45, 60, 90 & 120 Deg x 1/2 SHK V-Groove Router Bit SetMore infoAmana ToolAMS-150$384.30$345.87
Qty:
3-Pc V-Groove CNC Pack (Save 20%)See Chart Below1/2
Amana Tool AMS-157 3-Pc 3D CNC Signmaking, Lettering & Engraving Insert SC 45, 60, & 90 Deg x 1/2 SHK V-Groove Router Bit PackMore infoAmana ToolAMS-157$239.80$215.82
Qty:
4-Pc V-Groove CNC Pack (Save 20%) with Wood Storage BoxSee Chart Below*1/4
Amana Tool AMS-225 4-Pc 3D CNC Signmaking, Lettering & Engraving Insert SC 45, 60, 90 & 120 Deg x 1/4 SHK V-Groove Router Bit CollectionMore infoAmana ToolAMS-225$347.05$312.35
Qty:

attention*ATTENTION: Item #RC-1142, when using on small, hobby type CNC machines, set RPM to 12,000 rpm with 30% slower feed rate.

#AMS-150 Set includes the following:

Tool No
Description
Product Page

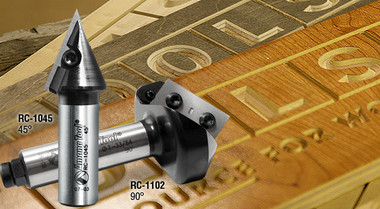

RC-1045
Solid Carbide Insert V-Groove 45º x 13/16" Dia x 1" Cut Height x 1/2" Shank Router Bit
RC-1108
Solid Carbide Insert V-Groove 60º x 1-1/32" Dia x 29/32" Cut Height x 1/2" Shank Router Bit
RC-1102
Solid Carbide Insert V-Groove 90º x 1-1/2" Dia x 3/4" Cut Height x 1/2" Shank Router Bit
RC-1104
Solid Carbide Insert V-Groove 120º x 2-1/32" Dia x 9/16" Cut Height x 1/2" Shank Router Bit

#AMS-153 Set includes the following:

Tool No
Description
Product Page
RC-1145
Solid Carbide Insert V-Groove 45º x 13/16" Dia x 63/64" Cut Height x 1/4" Shank Router Bit
RC-1148
Solid Carbide Insert V-Groove 60º x 1-1/16" Dia x 59/64" Cut Height x 1/4" Shank Router Bit
RC-1142*
Solid Carbide Insert V-Groove 90º x 1-1/2" Dia x 3/4" Cut Height x 1/4" Shank Router Bit

#AMS-157 Set includes the following:

Tool No
Description
Product Page
RC-1045
Solid Carbide Insert V-Groove 45º x 13/16" Dia x 1" Cut Height x 1/2" Shank Router Bit
RC-1108
Solid Carbide Insert V-Groove 60º x 1-1/32" Dia x 29/32" Cut Height x 1/2" Shank Router Bit
RC-1102
Solid Carbide Insert V-Groove 90º x 1-1/2" Dia x 3/4" Cut Height x 1/2" Shank Router Bit

#AMS-225 Set includes the following:

Tool No
Description
Product Page
RC-1145
Solid Carbide Insert V-Groove 45º x 13/16" Dia x 63/64" Cut Height x 1/4" Shank Router Bit
RC-1148
Solid Carbide Insert V-Groove 60º x 1-1/16" Dia x 59/64" Cut Height x 1/4" Shank Router Bit
RC-1142*
Solid Carbide Insert V-Groove 90º x 1-1/2" Dia x 3/4" Cut Height x 1/4" Shank Router Bit
RC-1146
Solid Carbide Insert V-Groove 120º x 1-23/64" Dia x 25/64" Cut Height x 1/4" Shank Router Bit

Each V Groove router bit in these collections comes complete with solid carbide insert knives designed to route MDF, Solid Surface, Melamine and Wood to a perfect joint. Unique grinding angles to eliminate build up at the V point.

The innovative CNC tool design uses a high grade solid carbide insert knife which allows you to get two uses out of each insert. Once insert knife show signs of wear you can rotate the insert for a brand new cutting edge. For replacement knives, please scroll down below. The secure locking screw system ensures maximum safety and maintains cutting accuracy. CNC router requires quality hold downs to ensure the least possibility of material shifting during operation.

Advantages of Solid Carbide Insert CNC Tooling:

  • Long lasting insert knives provide superior, smooth quality cuts every time.
  • Insert tooling allows for harder grades of carbide.
  • Cost effective solution compared to replacing brazed router bits.

Set #'s AMS-150 and AMS-225 are stored in a solid wood showcase storage box with a Plexiglas® clear lid.

 Excellent for cutting:

  • Aluminum, Brass, Bronze, Copper, Gold, Silver & Carbon Fiber (Engraving Only)
  • Acrylic/Plastic
  • Composites
  • Composite Decking
  • Foam
  • High-Density Polyethylene (HDPE)
  • Laminate
  • Melamine
  • MDF/HDF
  • PVC
  • Sign Board
  • Solid Surface
  • Veneered Plywood
  • Wood
  • Xanita® Board*
  • 20lbs High Density Urethane

*When working with Xanita LightBoard panel (X-board®, X-board® plus) we recommend using MDF knives for better results.

For best finishing results, blow hot air on the cut area while cutting, with a low feed rate of 500-1,000mm/min at RPM 6,000-10,000.

#RC-1104 is suitable for cutting Cristal Plexiglas.
#RC-1049 has a extra-long shank of 2-1/2"

Note: Items with a 1/2" shank do not have a screw/nut at the top of the shank.

red triangleWarning:
Before using any insert tool, make sure the set screw is tightened firmly. When replacing a dull insert, first clean the tool and remove all dust prior to inserting the new knife.

Set #AMS-150
Cost of 4 Bits
Purchased Individually
$412.07
Set Selling Price$329.40
Buying the Set you Save20%
Set #AMS-153
Cost of 3 Bits
Purchased Individually
$256.85
Set Selling Price$205.52
Buying the Set you Save20%
Set #AMS-157
Cost of 3 Bits
Purchased Individually
$256.85
Set Selling Price$205.52
Buying the Set you Save20%
Set #AMS-225
Cost of 4 Bits
Purchased Individually
$371.82
Set Selling Price$297.45
Buying the Set you Save20%
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
