3 Part Insert Adjustable Grooving Cutter with Scorer 4-15.5mm Kerf
*Sort the Table by clicking on the Column Heading
| D | B | d | Hex Screw | Repl. Torx® Screw | Replacement Knives | RPM | t | Teeth | Brand | Tool No | Our Price | Wish List | Ready To Buy | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 150mm | 4.0-15.5mm | 1-1/4 | 67113 | 67114 | AMA-17(2), RCK-18(4), RCK-71(4) | 5,500-8,500 | 45mm | 2+4+4 | Amana Tool 61354 3-Piece Insert Carbide Adjustable Groove w/Scorer 150mm D x 4.0 to 15.5mm CH x 1-1/4 Bore Shaper CutterMore info | Amana Tool | 61354 | $522.50$470.25 |

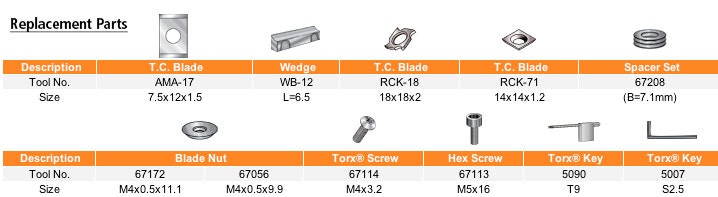

Replacement Parts
Torx Key® for #61354 use #5090
Wedge (2) for #61354 use #WB-12
Spacer Set for #61354 use #67208
RCK-18 Blade Nut for #61354 use #67172
RCK-71 Blade Nut for #61354 use #67056
Torx Key® for #61354 use #5090
Wedge (2) for #61354 use #WB-12
Spacer Set for #61354 use #67208
RCK-18 Blade Nut for #61354 use #67172
RCK-71 Blade Nut for #61354 use #67056
3 Part Insert Adjustable Grooving Shaper Cutter with Scorer 4mm - 15.5mm
Hardwearing steel body complete with tungsten carbideknives and scorer for improved finish. Suitablefor producing various thickness grooves andslots in softwood, hardwood and man-made boards(with or without coating) on a spindle molder.
Cutting width can be adjusted in 0.1mm stepsby using supplied spacer rings.
Tungsten Carbide Knives Included!
Hardwearing steel body complete with tungsten carbideknives and scorer for improved finish. Suitablefor producing various thickness grooves andslots in softwood, hardwood and man-made boards(with or without coating) on a spindle molder.
Cutting width can be adjusted in 0.1mm stepsby using supplied spacer rings.
Tungsten Carbide Knives Included!
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
